MICROSCOPE & PARTS

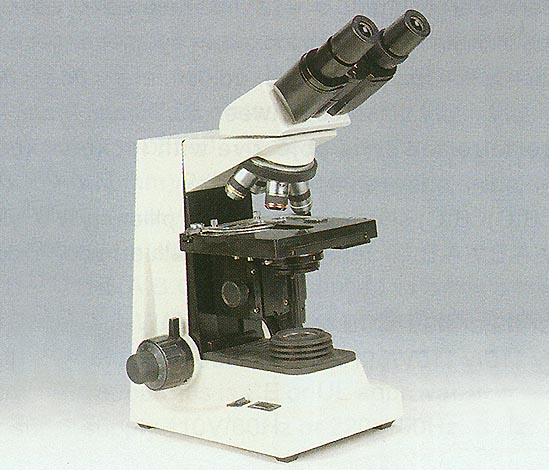

TS/XSZ-400M TS/(XSZ-400M)+(YX-1)
Magnification 40x-1600x
Wide Field Eyepiece 10x(Ø18mm)  16x(Ø11mm)
Mechanical tube length 160mm
Achromatic Objective 4x,10x,40x(s),100x(S,Oil)
Nosepiece Ball beating quadruple nosepiece
Coarse & Fine Adjustment Coaxial coarse & fine adjustment,Focusing rang 28mm,Focusing interval 0.002,,
Compensation Free Binocular Head Inclined at(30°),Rotatable(360°)
Double layer Mechanical stage, Size 140x160MM,Moving rang 74x50mm
Condenser Abbe condenser N.A 1.25 with lris Diaphragm and Filter holder
IIIumination Collector,6V/20W,Halogen Lamp,Adjustable brightness
Power AC Input 220V or 110V,DC oUTPUT 6v

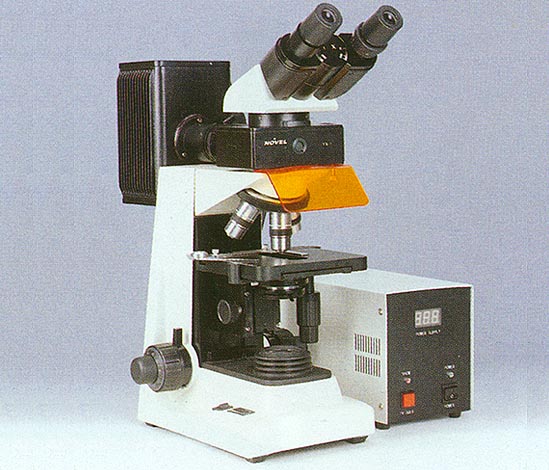

YX-1 EPI-FLURESCENT ATTACHMENT

SPECIFICATIONS

 YX-1A YX-1B
Fluorescent straight IIIumination B(Blue),G(Green)Exciting Light Filter
System,O Ordinary Light System 		0 0
100W HBO Super High-Pressured Spherical Mercury Lamp 0 0
Protection screen Screen to Resist the Ultraviolet Light 0 0
Power Inductance power box AC Input 220V 0 　
Switch power box AC Input 220V/110V(Interchangeable) 0 0
Power Cord 220V or 110V plug 0 0
Connecting wire Wire with Two connectors 0 0
Fluorescent Free Objective 4x,10x,40x(s),100x(S,Oil) 0 0
Immersion oill Fluorescent Free Oil 0 0
